Tailor your Solis with practical add-ons for work efficiency and comfort in every season.

Solis S26 Shuttle XL

Integrated Loader Joystick (Optional)
Seamlessly integrated loader joystick for effortless operation and enhanced productivity.
Heavy-Duty Front Axle
Strong and durable front axle designed to provide superior stability and high load-handling capacity.
Quick Attach Loader
Quick-attach loader system for easy and efficient implement swapping.

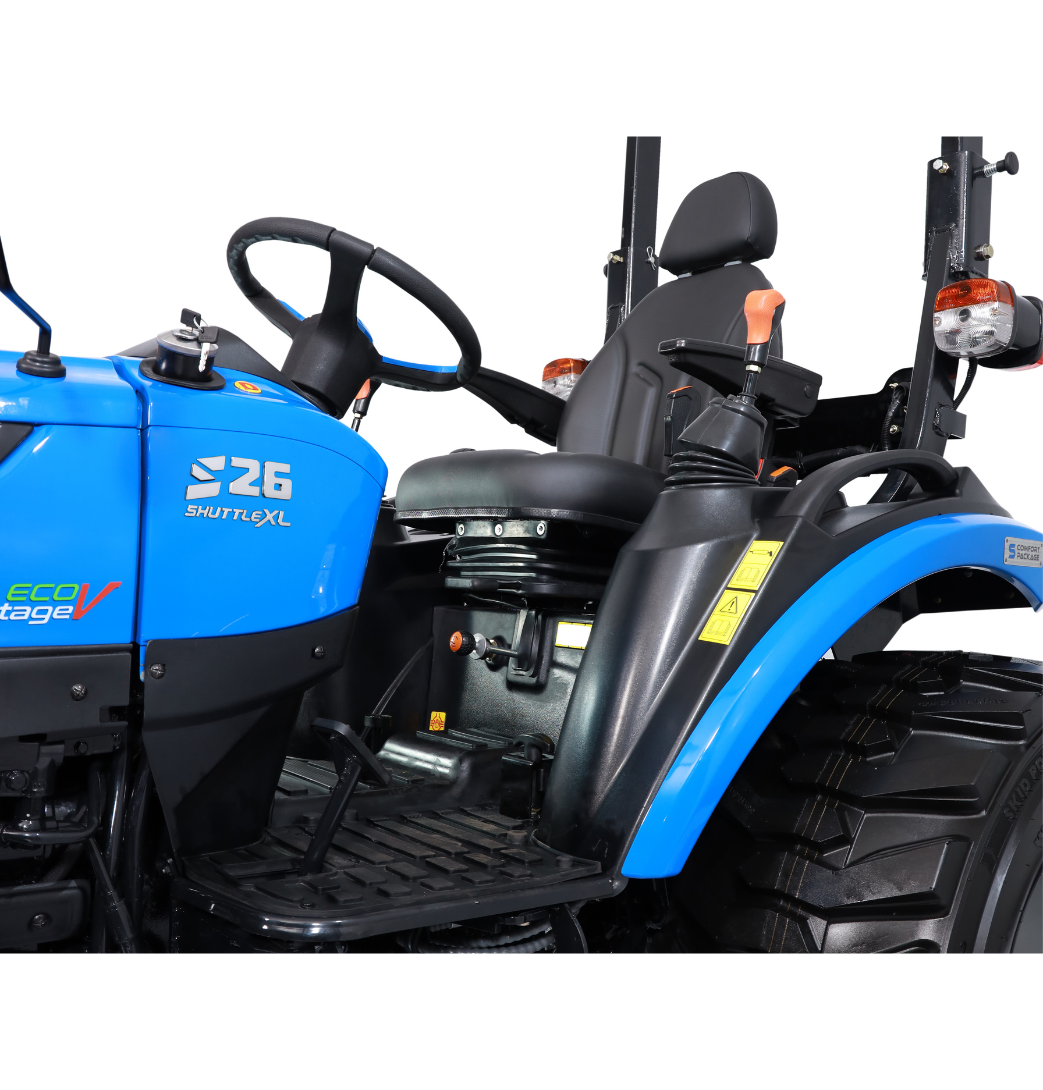

Synchromesh Shuttle
Synchromesh shuttle enables smooth, clutch-free forward and reverse direction changes.
9F + 9R Gearbox
Advanced 9 forward + 9 reverse gearbox offering optimized speed and precise control.
Low Maintenance
Built with durability in mind, delivering low-maintenance performance for uninterrupted farming operations.

Select Equipments

Fully Hydraulic Front Loader

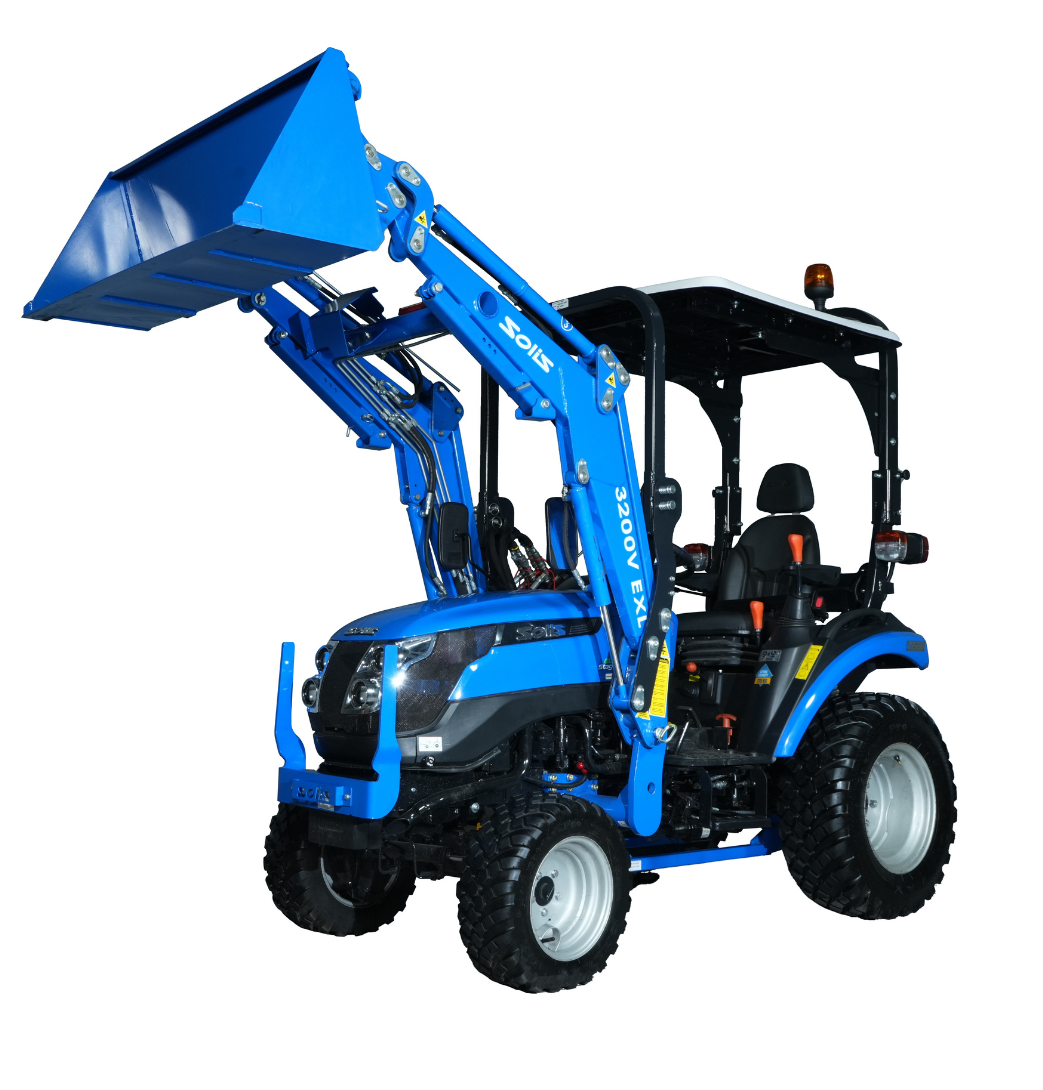

Front Loader 3rd Function

Shovel

4in1 Shovel

Siloclaw

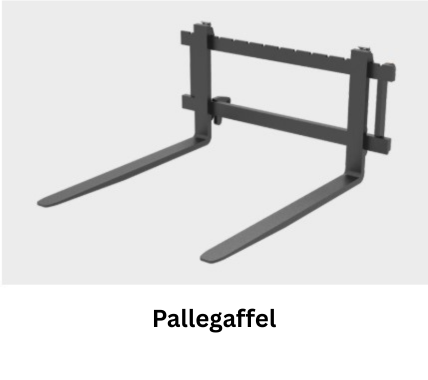

Pallet Forks

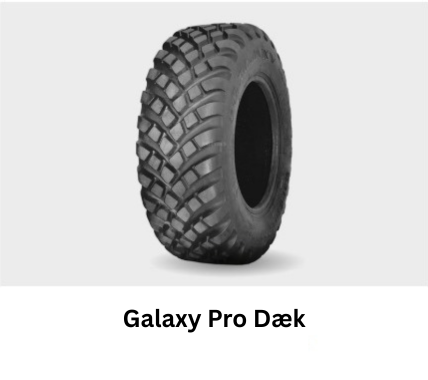

Garden Pro Tires

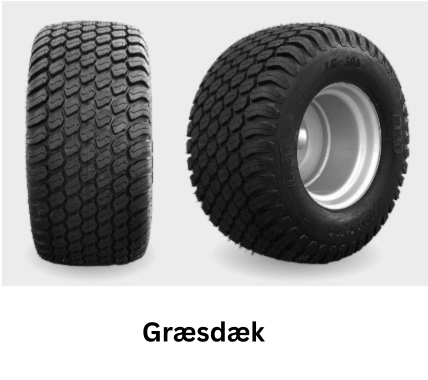

Turf Tires

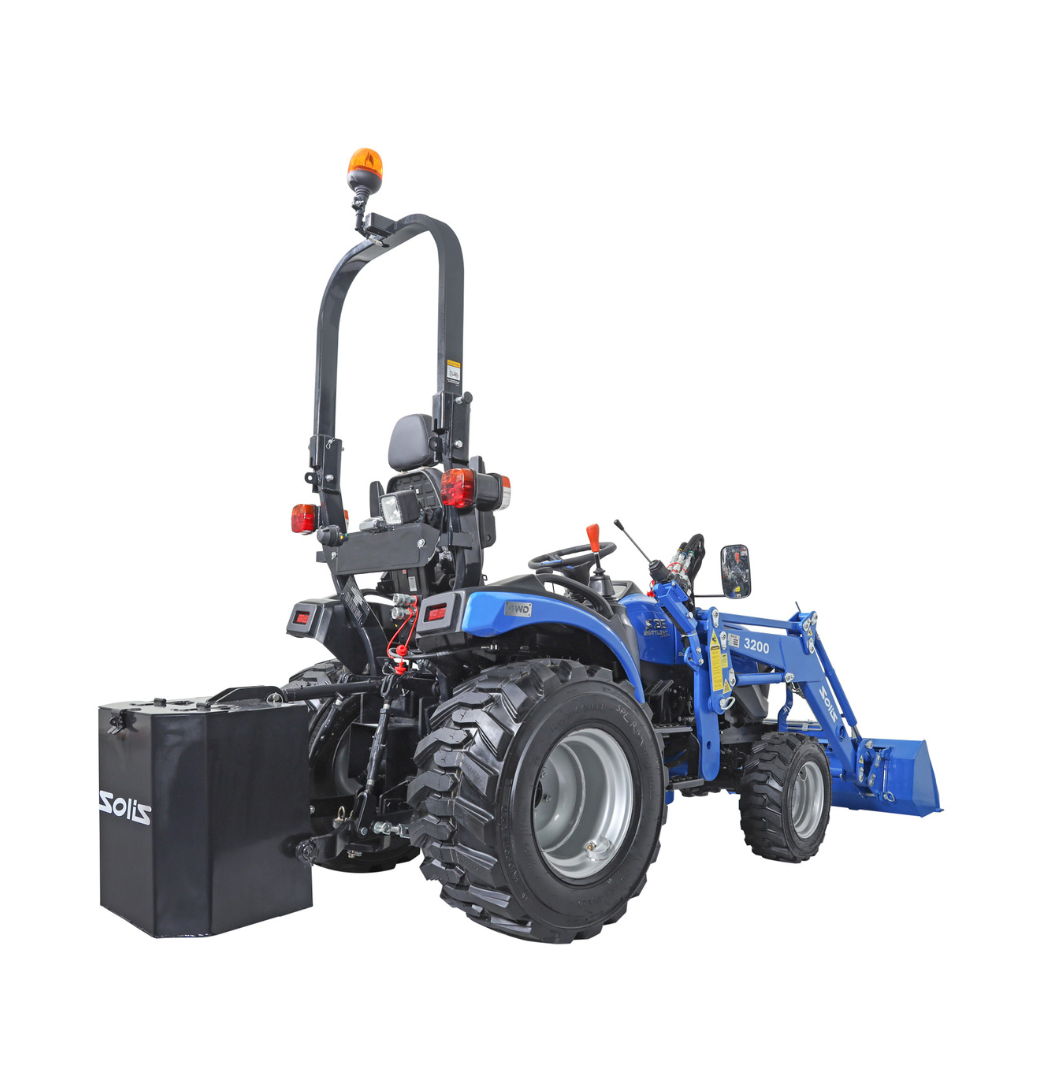

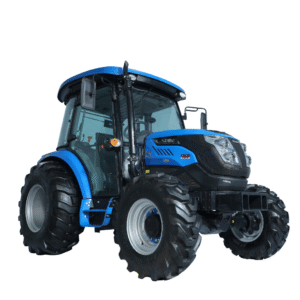

Industrial Tires

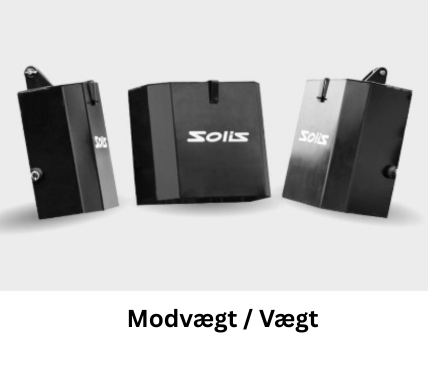

Counter Weight Box For Lift

Num Plate & Registration

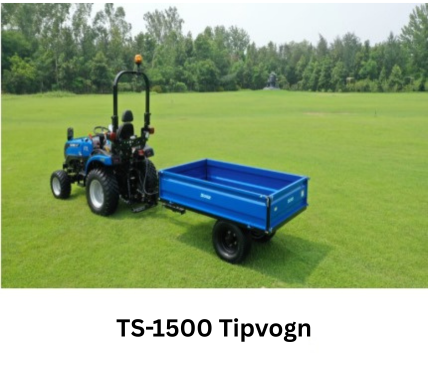

Solis TS-1500 Tipper

Product total

Options total

Grand total

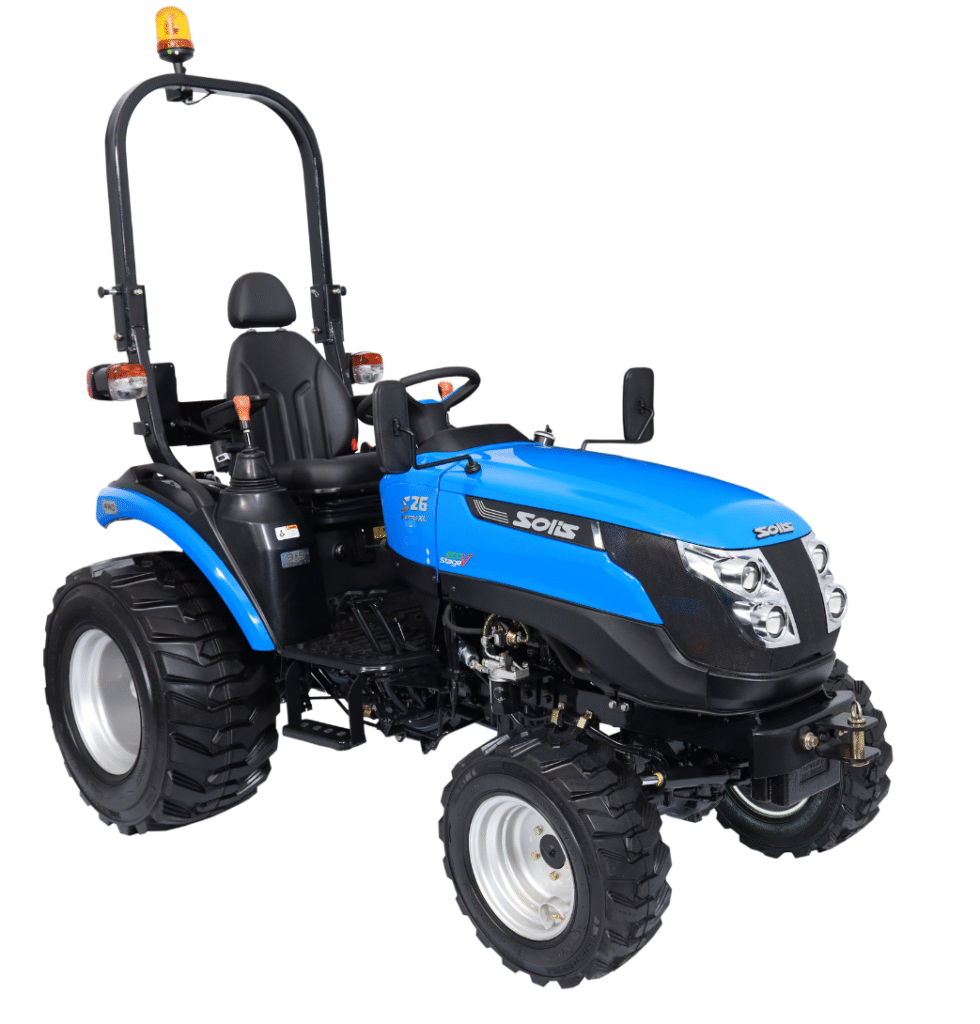

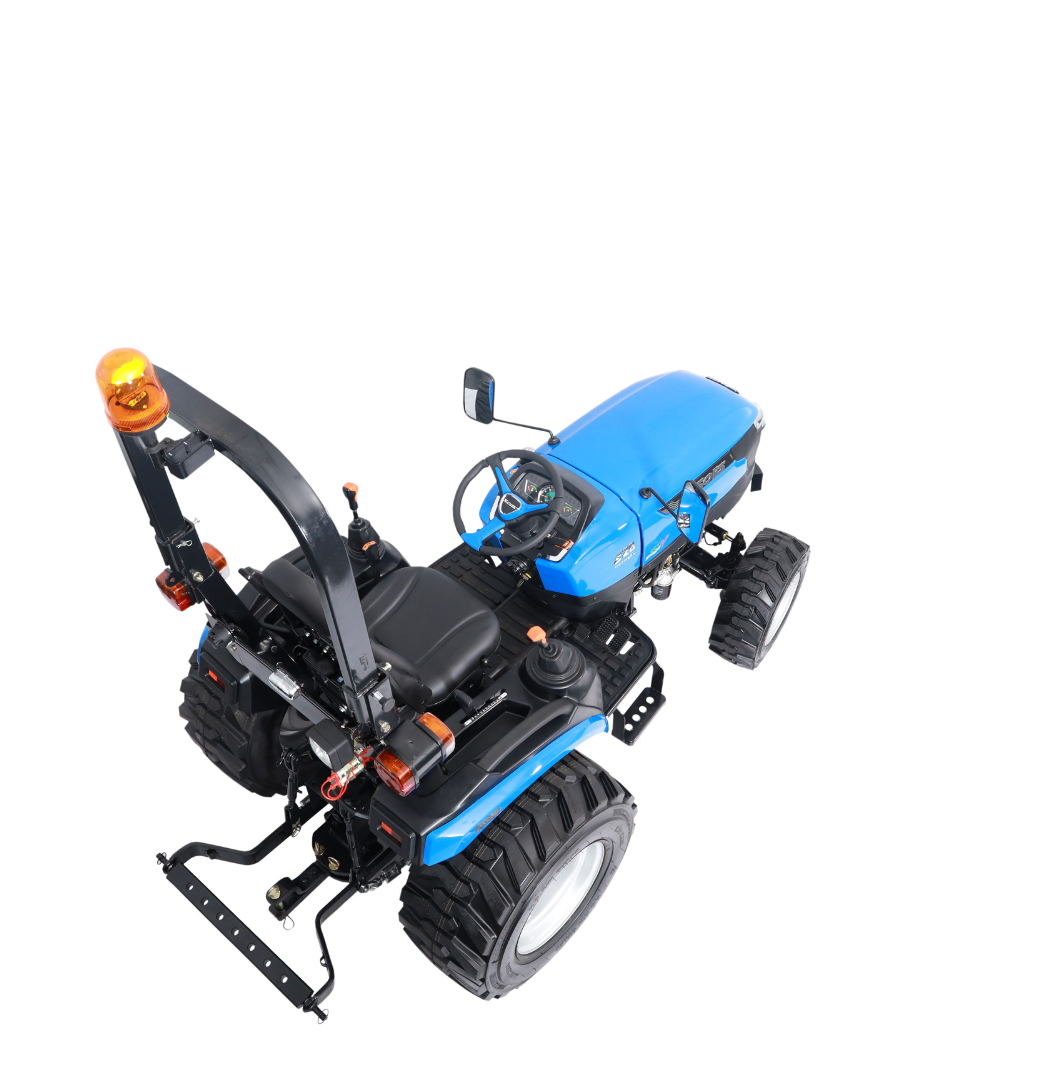

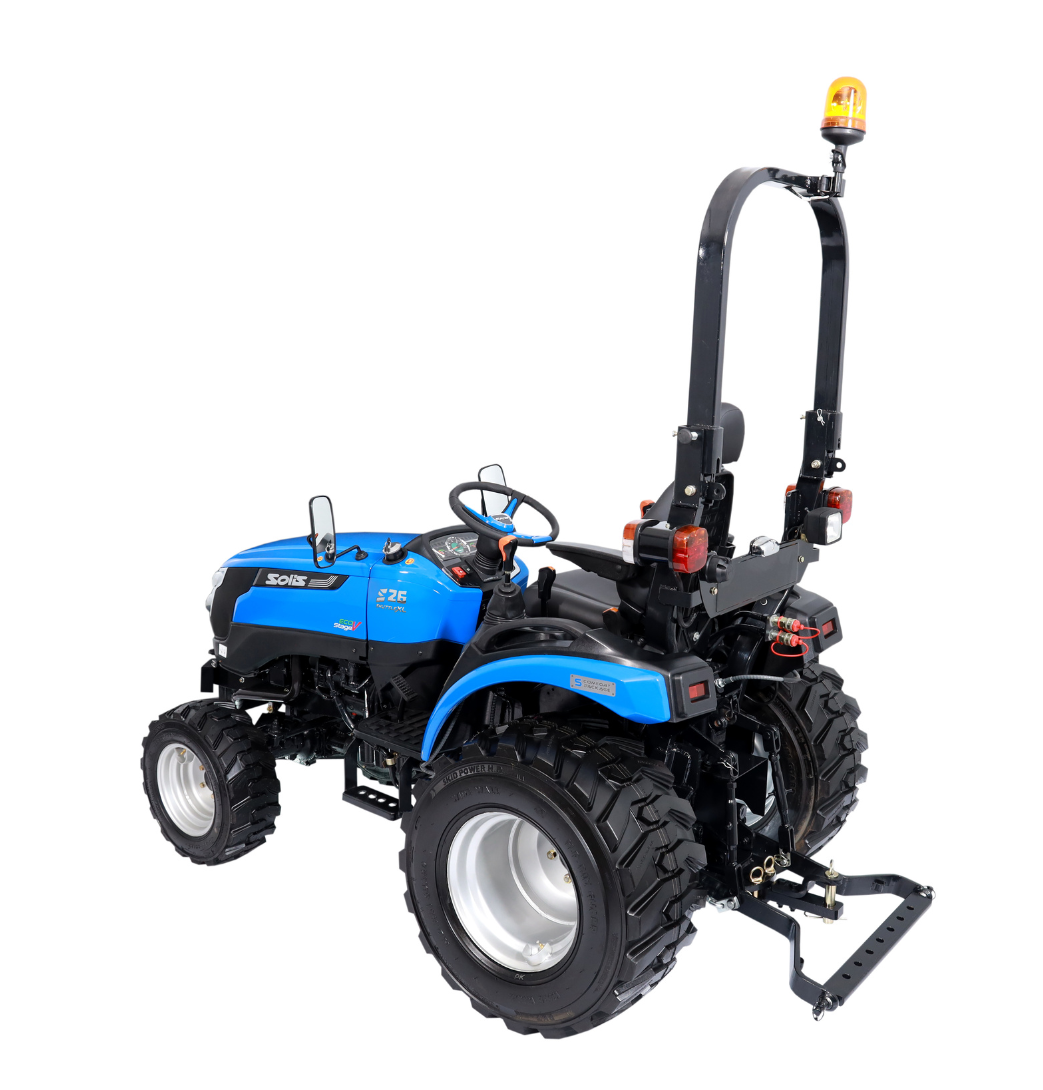

Solis S26 Shuttle XL

Unlock the full potential of your farm with the SOLIS S26 Shuttle XL. Designed with cutting-edge technology and formidable power, this tractor maximizes your efficiency and provides outstanding results every time. With a high lifting capacity of 600 kg and the advanced Synchromesh Shuttle Lever transmission, the SOLIS S26 Shuttle XL empowers you to tackle any agricultural challenge with confidence and precision.

Technical Specifications

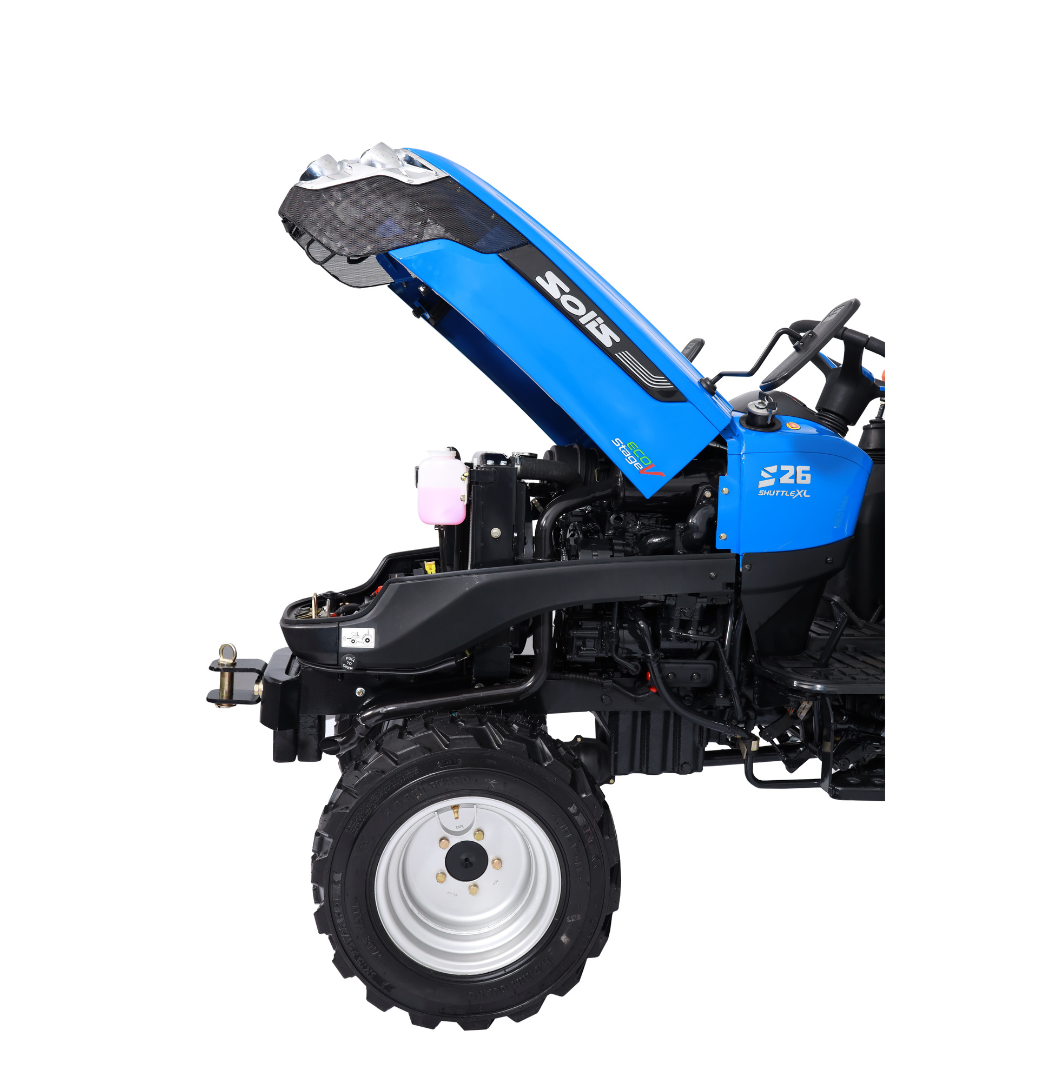

Engine

HP Category	26
No. of Cylinders	3
Aspiration	Naturally
Cubic Capacity (cc)	1319
Rated RPM	2500
Air Cleaner	Dry
Cold Start	Standard
Max Torque (Nm)	76.3
Exhaust	Silencer in the engine compartment, downward discharge
Engine Type	Mitsubishi 3-Cylinder Diesel Engine

TRANSMISSION

Gear Shifting	Center shift (std.), Side shift (opt.)
Drive	4WD
Clutch	Single Clutch
Gearbox	9 Forward + 9 Reverse (Side Shift Gear)
Front Axle	Heavy Duty
Transmission	Constant Mesh with Synchromesh Shuttle Lever

BRAKES

Brakes	Oil Immersed
Type of Actuation	Mechanical
Parking Brake	Independent

HYDRAULICS

3 Point Linkage	Cat 1-N
Stay Bars	Anchor Chain
Additional Hydraulic Circuit	1 DA (ROPS) / 3DA (Cabin)
Hydraulic Lifting Capacity (Kg)	775 Kg
Lift Rods	Standard
Litres Per Minute (LPM)	17.8

TYRES (FRONT/REAR)

Front	6.00-12
Rear	8.30-20

SPEED FORWARD

Maximum Speed (Km/Hr)	21.46 @ 2760 fly up
Minimum Speed (Km/Hr)	1.14 @ rated

DIFFERENTIAL LOCK

Differential Lock

Yes, Foot Operated

CAPACITY (Ltrs.) (+/-5%)

Fuel Tank (Ltr.)

DIMENSION & WEIGHT(+/-5%)

Weight (Kg)	1250
Wheel Base (mm)	1570
Total Length (mm)	2895
Total Width (mm)	1215 (max) – 1050 (min)
Height (mm) Up to ROPS	2325
Min. Ground Clearance (mm)	240
Front Track (mm)	885
Rear Track (mm)	960

ELECTRICAL

Battery	12V, 65 Ah
Alternator	12V, 36 A

SAFETY SWITCHES

Clutch Safety Switch	Standard
PTO Safety Switch	Standard
Neutral Safety Switch	Standard

SPECIAL FEATURES

Fuel Indicator Gauge	Standard
Front Tow Hook	Standard
Front & Rear Weights with Std. Ballast-Front Weights	2 x 15 Kg
Trailer Hitch	1. E-marked swinging drawbar, 2. Clevis Hitch
ROPS	Yes
Cabin	Yes

STEERING

Steering

Power

TURNING RADIUS

With Brakes (m)

3.18 (RHS), 3.25 (LHS)

TYRES

radial	agri
Radial Agri: Front \| Rear	tuf-front
Turf	Front \| Rear ind-front
Ind: Front \| Rear	galaxy-pro
280/70 R18	25×8.50-14
13.60-16	23×8.50-12

STANDAED FEATURES

INTEGRATED LOADER JOYSTICK (OPTIONAL)	Integrated Loader Joystick for Seamless Operation and Enhanced Productivity
HEAVY DUTY FRONT AXLE	Heavy-Duty Front Axle for Enhanced Stability and Load Handling Capacity.
QUICK ATTACHED LOADER	Quick Attach Loader for Easy Implement Swapping.
SYNCHROMESH SHUTTLE	Synchromesh Shuttle for Smooth, Clutch-Free Direction Changes.
LOW MAINTENANCE	Durable and low-maintenance Solis tractor deliver efficient performance, perfect for seamless farming operations.
